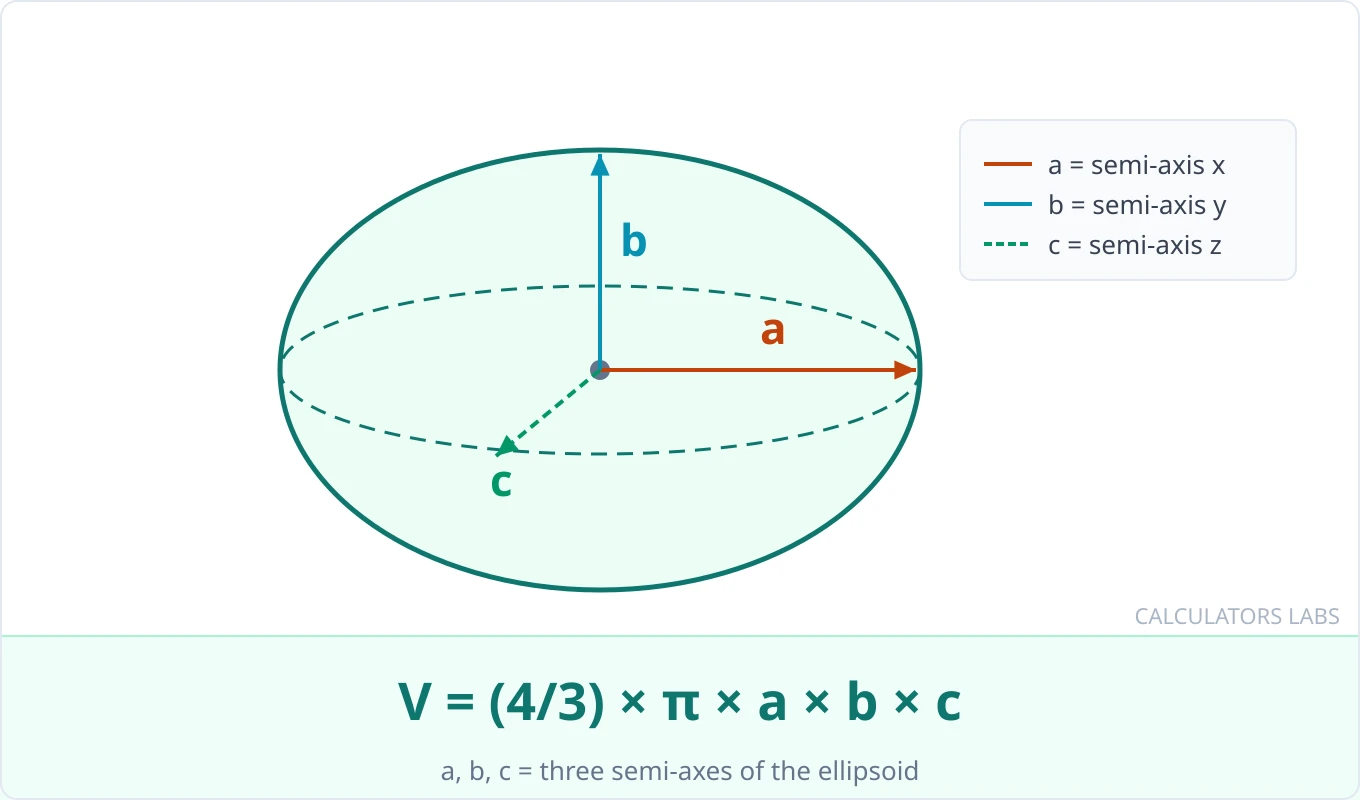

Ellipsoid Volume Formula
The standard formula for calculating ellipsoid volume is:
- V = volume
- π ≈ 3.14159
- a, b, and c = the three semi-axes
An ellipsoid is like a sphere stretched in three directions. If a, b, and c are all equal, the formula becomes the sphere volume formula.
How to Calculate the Volume of an Ellipsoid
To calculate ellipsoid volume by hand, make sure all three measurements are semi-axes and use the same unit. Then multiply them together and apply the sphere-like multiplier.
Step 1: Identify the Three Semi-Axes
The semi-axes are center-to-surface distances in three perpendicular directions.
Step 2: Multiply a, b, and c
Multiply the three semi-axes together. This gives the rectangular scale part of the calculation.
Step 3: Multiply by Pi
Use π ≈ 3.14159 unless your class asks for a rounded value such as 3.14.
Step 4: Multiply by 4/3
The final multiplier is 4/3, the same multiplier used in the sphere volume formula.
- Find semi-axes a, b, and c
- Multiply a × b × c
- Multiply by π
- Multiply by 4/3
- Write the answer in cubic units
Full Axes vs. Semi-Axes
Many ellipsoid problems give full dimensions, such as length, width, and height. The formula does not use those full dimensions directly. It uses half of each one.
For example, if an ellipsoid is 20 cm long, 12 cm wide, and 8 cm high, use a = 10 cm, b = 6 cm, and c = 4 cm. If you only need to keep the proportions between two of those dimensions consistent when resizing, rather than computing volume, the Aspect Ratio Calculator handles that width-to-height scaling directly.
Ellipse vs. Ellipsoid Volume
An ellipse is a flat 2D shape with area but no volume. An ellipsoid is a 3D shape with all three dimensions, length, width, and height, so it has volume.
If your object has depth in all three directions, use the ellipsoid formula. If it is only a flat oval on paper, calculate ellipse area (π × a × b) instead.
Prolate Spheroid and Oblate Spheroid Volume
When two of the three semi-axes are equal, the ellipsoid becomes a special case called a spheroid. There are two types:
- Prolate spheroid: One axis is longer than the other two equal axes. Shape: like a rugby ball, watermelon, or American football (when two shorter axes are equal). Semi-axes: a = b < c.
- Oblate spheroid: One axis is shorter than the other two equal axes. Shape: like the Earth, a flying saucer, or a lens. Semi-axes: a = b > c.
The formula is the same for both: V = (4/3)πabc. For a prolate spheroid with a = b = 4 cm and c = 9 cm, the volume is (4/3)π × 4 × 4 × 9 = 192π cm³ ≈ 603.2 cm³. Enter the semi-axes above, the calculator handles all three axis combinations. A prolate spheroid with a straight cylindrical section added through the middle, rather than tapering smoothly end to end, is a capsule shape instead; the Capsule Volume Calculator covers that variant.
Worked Ellipsoid Volume Examples
The main trap in ellipsoid problems is easy to miss: the formula uses semi-axes, not full length, width, and height.
Example 1: Ellipsoid Volume From Semi-Axes
Problem: An ellipsoid has semi-axes 6 cm, 4 cm, and 3 cm. Find its volume.
- a = 6 cm, b = 4 cm, c = 3 cm
- Multiply the semi-axes: 6 × 4 × 3 = 72
- Use V = (4/3)πabc
- V = (4/3)π × 72 = 96π cm³
- Decimal approximation: 96 × 3.14159 = 301.59 cm³
Answer: The ellipsoid volume is 96π cm³, or about 301.6 cm³.
Example 2: Calculate Volume of Ellipsoid From Full Dimensions
Problem: A 3D model is shaped like an ellipsoid with full dimensions 16 cm by 10 cm by 8 cm. Estimate the volume.
- Convert to semi-axes: a = 8 cm, b = 5 cm, c = 4 cm
- Multiply: 8 × 5 × 4 = 160
- V = (4/3)π × 160
- V ≈ 670.21 cm³
Answer: The model volume is about 670.2 cm³.
Example 3: Radiology-Style Ellipsoid Volume Estimate
Problem: An oval structure is measured as 30 mm by 18 mm by 12 mm in three perpendicular directions. Estimate its ellipsoid volume.
- Semi-axes: a = 15 mm, b = 9 mm, c = 6 mm
- Axis product: 15 × 9 × 6 = 810
- V = (4/3)π × 810
- V ≈ 3,392.92 mm³
Answer: The estimated ellipsoid volume is about 3,392.9 mm³. The calculator can handle the math, but medical interpretation should come from a qualified professional.
Example 4: Compare an Ellipsoid With a Sphere
Problem: A sphere has radius 5 cm. An ellipsoid has semi-axes 7 cm, 5 cm, and 3 cm. Which has the larger volume?
- Sphere volume = (4/3)π(5³) = 523.60 cm³
- Ellipsoid volume = (4/3)π(7 × 5 × 3)
- Ellipsoid volume = (4/3)π(105) = 439.82 cm³
Answer: The sphere has the larger volume.
Example 5: 2:1 Ellipsoid With Known Small Semi-Axis
Problem: An ellipsoid has semi-axes in the ratio 2:1:1. The smaller semi-axes are both 4 cm, so the longer semi-axis is 8 cm. Find the volume.
- a = 8 cm, b = 4 cm, c = 4 cm
- Product = 8 × 4 × 4 = 128
- V = (4/3)π × 128
- V ≈ 536.17 cm³
Answer: The ellipsoid volume is about 536.2 cm³.
Ellipsoid Volume Units
Ellipsoid volume is written in cubic units. If the semi-axes are measured in millimeters, the answer is mm³. If they are measured in meters, the answer is m³.
| Input Unit | Volume Unit | Useful Conversion |
|---|---|---|
| Millimeters | mm³ | 1,000 mm³ = 1 cm³ |
| Centimeters | cm³ | 1,000 cm³ = 1 liter |
| Meters | m³ | 1 m³ = 1,000 liters |
| Inches | in³ | 231 in³ = 1 US gallon |
References
- Ellipsoid, Wikipedia: geometric definition, volume and surface area formulas, and use in geodesy and medical imaging.
- Ellipsoid, Wolfram MathWorld: formal mathematical treatment of the ellipsoid including all three semi-axis cases.
- Ellipsoid, Math is Fun: approachable explanation of semi-axes and how the ellipsoid formula relates to the sphere formula.
Ellipsoid Volume Mistakes to Avoid
- Using full axes instead of semi-axes: Divide full length, width, and height by 2 first.
- Confusing ellipse and ellipsoid: An ellipse is 2D; an ellipsoid is 3D.
- Mixing units: Convert all three measurements to the same unit before calculating.
- Using a ratio without size: A 2:1 ellipsoid ratio is not enough unless at least one actual measurement is known.
Frequently Asked Questions
How do you calculate the volume of an ellipsoid?
Use V = (4/3)πabc, where a, b, and c are the three semi-axes (center-to-surface distances in three perpendicular directions). Multiply all three semi-axes together, multiply by π, then multiply by 4/3.
Can I calculate ellipsoid volume from full length, width, and height?
Yes, divide each full dimension by 2 to get the semi-axes first. For a shape that is 20 × 12 × 8 cm, the semi-axes are a = 10, b = 6, c = 4 cm. Then: V = (4/3)π × 10 × 6 × 4 ≈ 1,005.3 cm³.
If all three semi-axes are equal, does this become the sphere formula?
Yes. When a = b = c = r, the formula V = (4/3)πabc becomes V = (4/3)πr³, the standard sphere volume formula. A sphere is just an ellipsoid with three equal semi-axes.
What is the difference between a prolate and oblate spheroid?
A prolate spheroid is elongated along one axis, like a rugby ball or watermelon (two shorter equal axes, one longer axis). An oblate spheroid is flattened, like the Earth or a lens (two longer equal axes, one shorter axis). Both use V = (4/3)πabc, enter the three semi-axes and the calculator handles both cases.
Why do radiologists use ellipsoid volume?
MRI and ultrasound scans give three perpendicular measurements of a mass or organ. Plugging those into the ellipsoid formula gives a reproducible volume estimate without complex 3D integration. It is an approximation, real biological shapes are not perfect ellipsoids, but it is widely accepted in clinical practice for structures like lymph nodes, tumors, and follicles.
Is there such a thing as ellipse volume?
No. An ellipse is a 2D shape with area but no volume. If your shape has depth in all three directions, it is an ellipsoid and you need V = (4/3)πabc. If it is a flat oval, calculate ellipse area (π × a × b) instead.
