The optimal box for packing 27 spheres of radius 2 cm is a 12 × 12 × 12 cm cube. With a sphere diameter of 4 cm, you fit a perfect 3 × 3 × 3 grid, giving a box volume of 1,728 cm³ and a minimum surface area of 864 cm². Because 27 = 3³, no rectangular box does it more efficiently.
That single line answers the most common version of the question. But "optimal" can mean smallest volume, minimum surface area, lowest material cost, or dimensions snapped to a 0.5 cm grid, and people also ask about other boxes (10×10×10, 12×12×11, 13×14×15) and other counts. This guide walks through the exact method so you can solve any version, then links to a calculator that does it instantly.
Table of Contents
- Quick answer at a glance
- Why 27 spheres is a special case
- The general formula for any box
- Step-by-step method
- How many fit in different cube sizes
- Can 27 fit in an 11 cm cube?
- Worked examples for specific boxes
- Minimum surface area: why the cube wins
- The "multiples of 0.5 cm" constraint
- Packing density
- Other sphere counts
- Frequently asked questions
Quick Answer at a Glance
| Question | Answer |
|---|---|
| Sphere radius | 2 cm (diameter = 4 cm) |
| Number of spheres | 27 |
| Optimal arrangement | 3 × 3 × 3 grid (simple cubic) |
| Optimal box dimensions | 12 × 12 × 12 cm |
| Box volume | 1,728 cm³ |
| Minimum surface area | 864 cm² |
| Packing density | ≈ 52.4% (simple cubic) |
| Dimensions are multiples of 0.5 cm? | Yes: 12.0 qualifies |
Why 27 Spheres Is a Special Case
The number 27 is a perfect cube: 27 = 3 × 3 × 3. That means the spheres line up into a flawless three-by-three-by-three lattice with no leftover space along any axis. Each sphere of radius 2 cm has a diameter of 4 cm, so three of them in a row span exactly 3 × 4 = 12 cm. Repeat that in all three directions and you get a 12 × 12 × 12 cm cube that holds all 27 with no gaps at the walls.
The General Formula: Spheres in Any Rectangular Box
For identical spheres packed in a simple cubic (grid) arrangement, the number that fits in a box is:
where d = 2r is the sphere diameter, and ⌊ ⌋ means round down to the nearest whole number.
For radius-2 spheres, d = 4 cm, so it simplifies to:
To go the other way (finding the smallest box for a target count), factor the count into three whole numbers as close to equal as possible, then multiply each by the diameter:
| Count | Factored | Optimal box |
|---|---|---|
| 8 | 2 × 2 × 2 | 8 × 8 × 8 cm |
| 27 | 3 × 3 × 3 | 12 × 12 × 12 cm |
| 64 | 4 × 4 × 4 | 16 × 16 × 16 cm |
Step-by-Step: Finding the Optimal Box for 27 Spheres
Step 1: Get the diameter. Radius 2 cm means diameter d = 2 × 2 = 4 cm. Every sphere needs a 4 cm slot along each axis.
Step 2: Factor the count into three sides. You want three whole numbers that multiply to 27 and are as equal as possible. The only balanced option is 3 × 3 × 3. (You could use 1 × 1 × 27, but that makes a long, thin box with huge surface area: the opposite of optimal.)
Step 3: Multiply each side by the diameter. 3 spheres × 4 cm = 12 cm per side, giving 12 × 12 × 12 cm.
Step 4: Confirm volume and surface area. Volume = 12³ = 1,728 cm³. Surface area = 6 × (12 × 12) = 864 cm², the minimum achievable for 27 spheres in a rectangular box.
How Many Spheres Fit in Different Cube Sizes?
A common follow-up compares cube sizes: "What is the maximum number of radius-2 spheres in a 10×10×10 vs 11×11×11 vs 12×12×12 box?" Using spheres-per-side = ⌊side ÷ 4⌋:
| Cube side (cm) | Spheres per side | Total spheres |
|---|---|---|
| 8 | 2 | 8 |
| 10 | 2 | 8 |
| 11 | 2 | 8 |
| 12 | 3 | 27 (optimal) |
| 13 | 3 | 27 |
| 14 | 3 | 27 |
| 15 | 3 | 27 |
| 16 | 4 | 64 |
Notice the jump: anything from 8 cm up to 11.9 cm holds only 8 spheres, because you cannot fit a third 4 cm sphere until the box reaches a full 12 cm. From 12 cm through 15.9 cm you hold exactly 27. The extra centimetres past 12 are wasted until you reach 16 cm and unlock a 4 × 4 × 4 = 64 arrangement. That is why 12 cm is the precise optimal edge: the smallest size that fits all 27.
Can 27 Spheres of Radius 2 Fit in an 11 cm Cube?
No, not with standard grid packing. An 11 cm side only allows ⌊11 ÷ 4⌋ = 2 spheres per row, so an 11 × 11 × 11 cm cube holds just 2 × 2 × 2 = 8 spheres. You need a full 12 cm edge for the third layer in every direction.
Worked Examples: Specific Box Dimensions
Here is how the formula handles the exact boxes people search for. Remember: radius-2 spheres need 4 cm per axis.
| Box (cm) | Per-axis fit | Spheres held | Holds all 27? |
|---|---|---|---|
| 12 × 12 × 12 | 3 × 3 × 3 | 27 | Yes (optimal) |
| 11 × 11 × 11 | 2 × 2 × 2 | 8 | No |
| 12 × 12 × 11 | 3 × 3 × 2 | 18 | No |
| 12 × 11 × 11 | 3 × 2 × 2 | 12 | No |
| 10 × 10 × 14 | 2 × 2 × 3 | 12 | No |
| 10 × 11 × 12 | 2 × 2 × 3 | 12 | No |
| 16 × 12 × 6 | 4 × 3 × 1 | 12 | No |
| 13 × 14 × 15 | 3 × 3 × 3 | 27 | Yes (but wasteful) |
Two takeaways. First, a box like 12 × 12 × 11 falls just short: that one missing centimetre drops you from 27 to 18 spheres. Second, 13 × 14 × 15 does hold 27, but it wastes material. Its surface area is 2 × (13·14 + 14·15 + 13·15) = 1,174 cm², far more than the cube's 864 cm². Bigger is not better when you are optimizing.
Minimum Surface Area: Why the Cube Wins
Many searches specifically ask for the box with minimum surface area for 27 spheres, useful when material or packaging cost is what you are minimizing. Among all rectangular boxes that hold a 3 × 3 × 3 grid, the cube has the lowest surface area because for a fixed volume a cube always minimizes surface area.
| Box (cm) | Holds 27? | Surface area |
|---|---|---|
| 12 × 12 × 12 | Yes | 864 cm² (minimum) |
| 13 × 14 × 15 | Yes | 1,174 cm² (+36% material) |
| 4 × 12 × 36 | Yes (1×3×9 grid) | 2,400 cm² (long and thin) |
If your goal is the cheapest container by surface area, 12 × 12 × 12 cm at 864 cm² is the exact optimal answer, and no rectangular box beats it.
The "Multiples of 0.5 cm" Constraint
A frequent variant of this problem requires the box dimensions to be multiples of 0.5 cm. Good news: this changes nothing here.
Packing Density: How Much Space Is Actually Used?

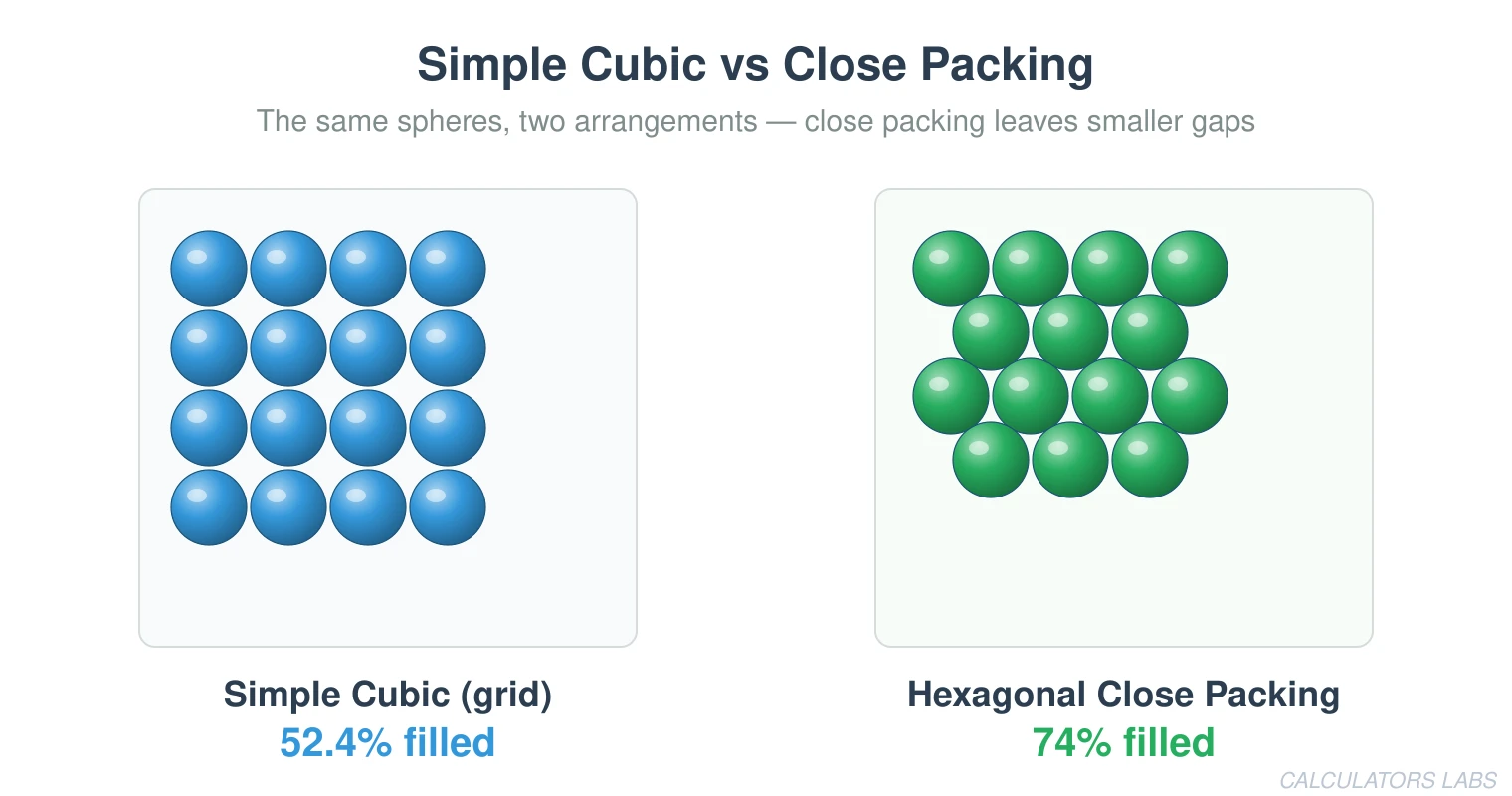

Even in the optimal cube, the spheres don't fill the box. Round objects always leave gaps. The packing density for a simple cubic (grid) arrangement is about 52.4%:
- Volume of 27 spheres = 27 × (4/3)π(2)³ = 288π ≈ 904.8 cm³
- Box volume = 1,728 cm³
- Density = 904.8 ÷ 1,728 ≈ 0.524 (52.4%)
This is the theoretical maximum for grid-aligned spheres. A staggered close-packing arrangement (the way cannonballs or oranges stack) pushes density to about 74%, but that arrangement no longer fits a clean rectangular box. For boxed packing, 52.4% is your working figure. You can confirm the single-sphere volume with the Sphere Volume Calculator.
What About Other Sphere Counts (34, 36, 64)?
The same method scales to any count. Factor it into three near-equal whole numbers:
- 36 spheres: 3 × 3 × 4, giving a 12 × 12 × 16 cm box (surface area 1,056 cm²). Not a perfect cube, so the box is slightly elongated.
- 64 spheres: 4 × 4 × 4, giving a 16 × 16 × 16 cm cube, clean like the 27 case.
- 34 spheres: an awkward number (2 × 17) with no balanced factoring. Round up to the next workable grid (a 3 × 3 × 4 = 36 box) and leave two slots empty.
Related Calculators
Working through a packing or volume problem? These tools pick up where this guide leaves off:
- Sphere Packing Calculator: enter radius, count, or box dimensions and get the optimal box, sphere count, surface area, and density instantly.
- Cube Volume Calculator: compute V = s³ (and the reverse, edge = ∛V) for any cube.
- Sphere Volume Calculator: the (4/3)πr³ volume of a single sphere.
- Cylinder Volume Calculator: for packing into a round container instead of a box.
Frequently Asked Questions
What are the optimal box dimensions for 27 spheres of radius 2 cm?
A 12 × 12 × 12 cm cube. The 4 cm diameter spheres form a 3 × 3 × 3 grid (since 27 = 3³), filling the cube with no wasted edge space. Volume is 1,728 cm³ and surface area is 864 cm².
Can 27 spheres of radius 2 fit in an 11 cm cube?
No. An 11 cm edge fits only two 4 cm spheres per row, so an 11 × 11 × 11 cm cube holds just 8 spheres. You need a full 12 cm edge in every direction for all 27.
How many radius-2 spheres fit in a 12 × 12 × 11 cm box?
18 spheres. The two 12 cm sides hold three spheres each, but the 11 cm side only holds two (⌊11 ÷ 4⌋ = 2), giving 3 × 3 × 2 = 18.
What is the minimum surface area container for 27 spheres of radius 2?
The 12 × 12 × 12 cm cube, with a surface area of 864 cm². A cube minimizes surface area for a fixed volume, so no rectangular box that holds the 3 × 3 × 3 grid uses less material.
What is the formula for how many spheres fit in a box?
N = ⌊L/d⌋ × ⌊W/d⌋ × ⌊H/d⌋, where d is the sphere diameter (2 × radius). For radius-2 spheres, d = 4 cm, so divide each box dimension by 4, round down, and multiply.
Do the box dimensions need to be multiples of 0.5 cm?
If a problem requires it, you are covered. The optimal edge is exactly 12.0 cm, already a multiple of 0.5. No rounding up is necessary, and rounding to 12.5 cm would only waste space.
How many spheres fit in a 10 × 10 × 10 cube versus a 12 × 12 × 12 cube?
A 10 cm cube holds 8 spheres (2 per side), while a 12 cm cube holds 27 (3 per side). Capacity stays at 8 until the box reaches a full 12 cm, then jumps to 27.
What is the packing density inside the optimal box?
About 52.4%, the standard density for a simple cubic arrangement. The 27 spheres occupy roughly 905 cm³ of the 1,728 cm³ box.
What is the volume of the 12 cm cube?
1,728 cm³, calculated as 12³ (edge length cubed).
Key Takeaways
The optimal box for 27 spheres of radius 2 cm is a 12 × 12 × 12 cm cube: the direct result of 27 being a perfect cube and each sphere needing 4 cm of space. That cube gives the smallest volume (1,728 cm³), the minimum surface area (864 cm²), and satisfies any 0.5 cm precision rule without rounding. For any other count or box shape, the same approach works: convert radius to diameter, divide and round down to count spheres, or factor the target count into three near-equal sides to build the box.
When you want the answer in one step, the Sphere Packing Calculator handles every variation instantly.
