When to Use the Sphere Packing Calculator
Use this sphere packing calculator when you need a cube-style container for a spherical product, ball, ornament, part, or set of equal spheres. It adds clearance around the sphere and shows inner box size, outer box size, package volume, void volume, and fill efficiency.
It helps when you are choosing box size for a sphere, estimating package volume for a ball, allowing space for padding, or checking simple grid arrangements such as 3 by 3 by 3 spheres.
Sphere Packing Formulas
- Sphere volume: V = (4/3)πr³
- Box volume: V = side³
- Void volume: box volume - sphere volume
- Fill efficiency: sphere volume ÷ box volume × 100
- Total shipment volume: inner box volume × quantity
The calculator uses the sphere diameter directly. If you only know the radius, double it first because diameter = 2 × radius.

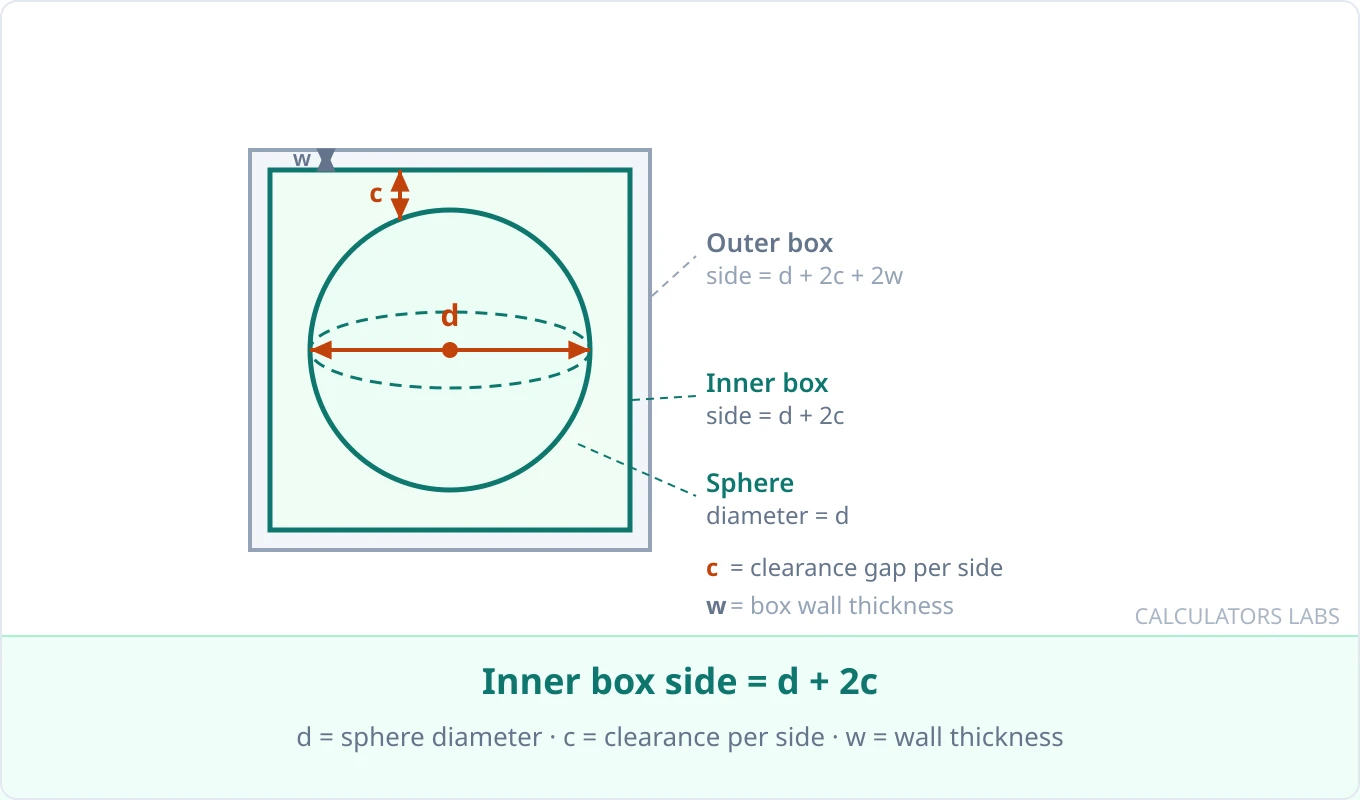

How to Calculate Box Size for a Sphere
To package one sphere in a cube-shaped box, start with the sphere diameter and add clearance on both sides. Clearance is the empty space or protective material between the product and the inside wall of the box.
Step 1: Measure the Sphere Diameter
Measure the widest distance across the sphere. If the problem gives radius instead of diameter, multiply the radius by 2.
Step 2: Choose Clearance per Side
Use small clearance for a rigid item that does not need padding. Use larger clearance when the item is fragile or needs foam, paper fill, molded inserts, or movement protection during shipping.
Step 3: Calculate Inner Box Side
Add clearance twice because the sphere needs space on the left and right, front and back, and top and bottom.
Step 4: Compare Sphere Volume and Box Volume
The box will always contain void space because a round object cannot fill the corners of a cube. The fill efficiency shows what percent of the inner box volume is occupied by the sphere itself.
One Sphere vs. Many Spheres
There are two common sphere packing jobs. One is choosing a box for a single round item with enough clearance for protection. The other is checking how many equal spheres can fit in one shared container.
The calculator above covers the single-sphere box size and gives a simple grid estimate for repeated equal spheres. For more exact loose packing, you may also need to compare grid packing with staggered layers and the shape of the container.
Simple Cube Packing Estimate
For classroom and first-pass packaging estimates, a simple grid is often enough. Divide each container dimension by the sphere diameter, round down, and multiply the counts.
This simple method does not include staggered or hexagonal packing, but it is easy to check and works well for many homework-style sphere packing problems.
Sphere Packing Examples
The examples below cover practical sphere packing calculations involving radius, diameter, box dimensions, clearance, and container volume.
Example 1: Box Size for One Sphere With Clearance
Problem: A glass ornament has a diameter of 10 cm. It needs 1 cm of protective clearance on every side before shipping. Find the inner box side, sphere volume, box volume, and void volume.
- Inner side = 10 + 2 × 1 = 12 cm
- Radius = 10 ÷ 2 = 5 cm
- Sphere volume = (4/3) × π × 5³ = 523.6 cm³
- Box volume = 12³ = 1,728 cm³
- Void volume = 1,728 - 523.6 = 1,204.4 cm³
Answer: Use an inner cube box of 12 cm × 12 cm × 12 cm. The package has about 1,204.4 cm³ of void space before padding is considered.
Example 2: Optimal Box for 27 Spheres With Radius 2 cm
Problem: A student needs a simple box arrangement for 27 equal spheres, each with radius 2 cm. What cube box can hold them in a regular grid?
- Diameter = 2 × 2 = 4 cm
- 27 spheres can be arranged as 3 × 3 × 3
- Required side = 3 × 4 = 12 cm
Answer: A 12 cm × 12 cm × 12 cm box can hold 27 spheres in a simple 3-by-3-by-3 grid, before adding clearance or wall thickness.
Optimal Container for 2 cm Radius Spheres With 0.5 cm Precision
Problem: You are comparing box sizes for spheres with radius 2 cm. Measurements must be rounded to the nearest 0.5 cm. A 3-by-3-by-3 grid is required, and you want 0.25 cm clearance on each outside face of the arrangement.
- Sphere diameter = 4 cm
- Grid side without clearance = 3 × 4 = 12 cm
- Add outside clearance = 12 + 2 × 0.25 = 12.5 cm
Answer: A 12.5 cm cube box fits the arrangement with the stated clearance and follows the 0.5 cm precision requirement.
Example 4: Can a 10 cm Cube Hold 27 Spheres of Radius 2 cm?
Problem: A container is 10 cm by 10 cm by 10 cm. Can it hold 27 spheres with radius 2 cm in a simple grid?
- Sphere diameter = 4 cm
- Spheres per row = floor(10 ÷ 4) = 2
- Total simple-grid capacity = 2 × 2 × 2 = 8 spheres
Answer: No. A 10 cm cube holds only 8 spheres in a simple grid. A 12 cm cube is needed for a 3-by-3-by-3 arrangement of 27 spheres.
Example 5: Total Shipment Volume for Multiple Sphere Packages
Problem: A company ships 36 spherical products. Each product needs an individual cube package with an inner side of 12 cm. Estimate the total inner shipment volume.
- Volume of one package = 12³ = 1,728 cm³
- Total volume = 1,728 × 36 = 62,208 cm³
Answer: The 36 individual packages have a combined inner package volume of 62,208 cm³.
Practical Packing Notes
- Fragile spheres: Add enough clearance for foam, molded pulp, air pillows, or paper fill.
- Retail packaging: Include space for inserts, labels, and product presentation.
- Shipping cost: Carriers may charge by dimensional weight, so outer box size can matter as much as actual weight.
- Loose sphere packing: If many spheres share one container, calculate layer counts and arrangement separately.
Frequently Asked Questions
How do I calculate the box size for a sphere?
Add clearance to both sides of the sphere diameter. The formula is inner box side = sphere diameter + 2 × clearance.
How many spheres fit in a box?
For a simple grid estimate, divide each box dimension by the sphere diameter, round each result down, and multiply the three counts. Staggered packing can fit more spheres in some cases, but it is more complex.
What is void volume in sphere packing?
Void volume is the space inside the box that is not occupied by the sphere. It is calculated as box volume - sphere volume.
Why is fill efficiency low for a sphere in a cube?
A sphere cannot fill the corners of a cube. Even without clearance, a sphere inside a tight cube fills about 52.4% of the cube volume.
Can this sphere packing calculator find the optimal cylinder arrangement?
No. This calculator handles cube-style boxes and simple grid estimates. Cylinder packing depends on radius ratio, layer count, staggered arrangements, and height, so it needs a separate model.
Should I use diameter or radius?
Use diameter in the calculator. If you know radius, multiply it by 2 first.
